Isıyla Daralan Makaronlar
Isıyla Daralan Makaronlar, yüksek sıcaklıkta çapı küçülerek kabloları yalıtan ve koruyan polimer tüplerdir. Elektriksel yalıtım, mekanik dayanıklılık ve güvenlik sağlamak için askeri, otomotiv, elektronik ve telekomünikasyon gibi birçok sektörde kullanılır.
LS Tube Military | Ecos Prime
Tüm ürünleri görüntülemek için lütfen tıklayınız.
LS Tube | Ecos Prime
Tüm ürünleri görüntülemek için lütfen tıklayınız.

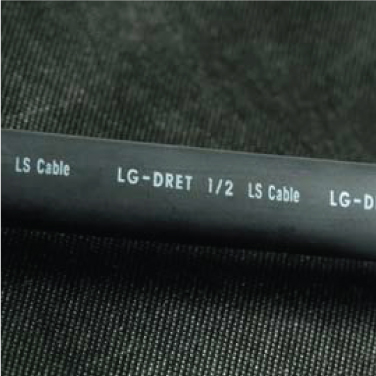

LG-DRET
Diesel-resistant, Flexible, Elastometric Polyolefin Tubing
Key Specifications
– Operating temperature range: -75°C ~ 150°C
– Flammability: ASTM D 2671 Procedure A, C
– Minimum shrink temperature: 135°C
– Shrink ratio: 50% or more in radial direction
– Standards: MIL-I-23053/16

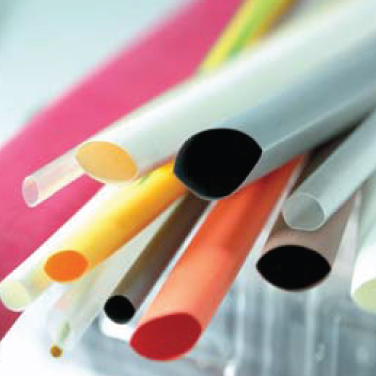

GSHS-1635F
Diesel-resistant, Flexible, Elastometric Polyolefin Tubing
Key Specifications
– Operating temperature range: -55°C ~ 135°C
– Flammability: ULVW-1, -F- mark (except clear products)
– Minimum shrink temperature: 90°C
– Shrink ratio: 50% or more in radial direction
– Standards: UL 224 (File No. E84393: VW-1, 600V, 125°C, except clear products)
MIL-I-23053/5: 600V, 135°C, Class 1 and Class 3, Class 2 (clear products only)

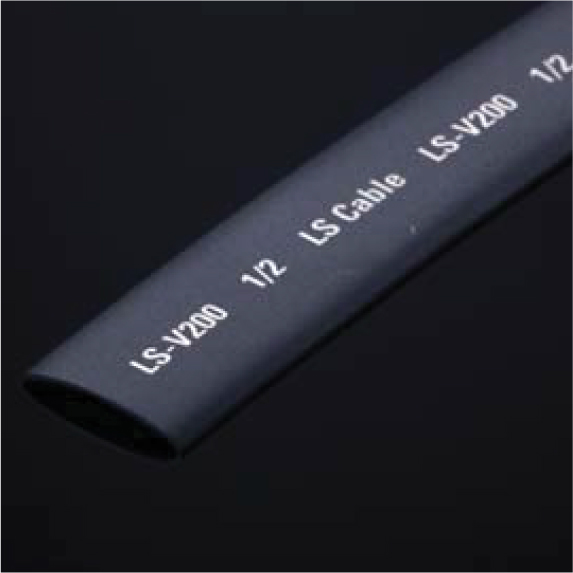

LS-V200
Fluoro Elastomeric Tubing
Key Specifications
– Operating temperature range: -55°C ~ 200°C
– Flammability: ASTM D 2671 Procedure A.
– Minimum shrink temperature: 175°C
– Shrink ratio: 50% or more in radial direction
– Standards: MIL-I-23053/13 and MIL-DTL-23053/13

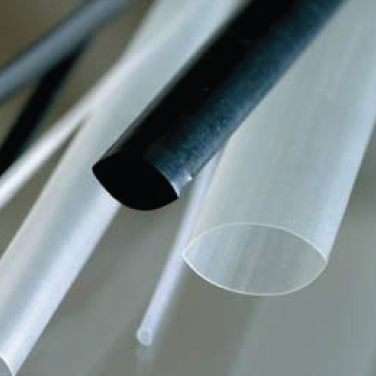

GSHS-1675
Diesel-resistant, Flexible, Elastometric Polyolefin Tubing
Key Specifications
– Operating temperature range: -55°C ~ 175°C
– Flammability: ULVW-1, CSA OFT
– Minimum shrink temperature: 175°C
– Shrink ratio: 50% or more in radial direction
– Standards: UL 224 (File No. E84393: VW-1, 600V, 150°C)
CSA C22.2 (File No. LR55659: OFT, 600V, 150°C)
MIL-I-23053/8 Class 1, 600V, 175°C

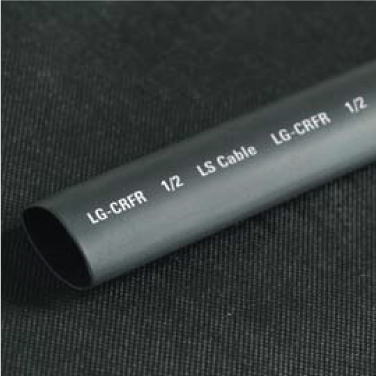

LG-CRFR
Diesel-resistant, Flexible, Elastometric Polyolefin Tubing
Key Specifications
– Operating temperature range: -70°C ~ 121°C
– Flammability: ASTM D 2671 Procedure A, C
– Minimum shrink temperature: 135°C
– Shrink ratio: 50% or more in radial direction
– Standards: MIL-I-23053/1 Class 1 and Class 2
GSHS-3635W
Flexible Dual-Wall Polyolefin Tubing
Key Specifications
– Operating temperature range: –55°C ~ 135°C (Crosslinked outer wall)
– Minimum shrink temperature: 120°C
– Shrink ratio: 67% or more in radial direction
– Standards: UL 224 (File No. E153276: 600V, 125°C, except clear products) AS23053/4 Class 3

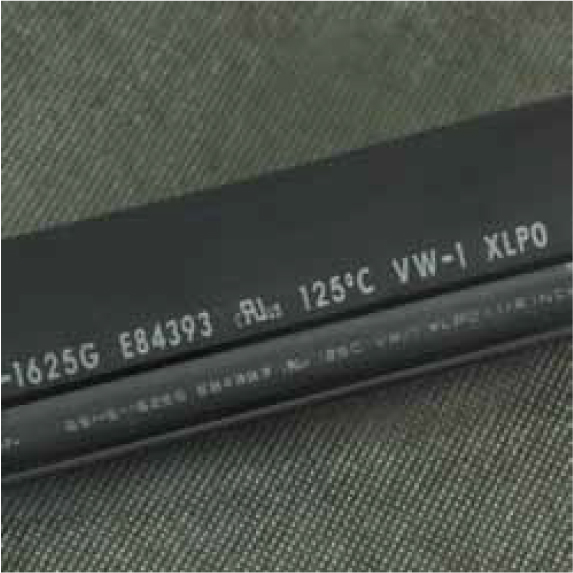

GSHS-1625G-HF
Halogen Free, Flexible Polyolefin Tubing
Key Specifications
– Operating temperature range: -30°C ~ 125°C
– Flammability: UL VW-1
– Minimum shrink temperature: 90°C
– Shrink ratio: 50% or more in radial direction
GSHS-4635WT
Thin & Dual-Wall Polyolefin Tubing
Key Specifications
– Operating temperature range:–30°C ~ 135°C (Crosslinked outer wall)
– Minimum shrink temperature: 120°C
– Shrink ratio: 75% or more in radial direction
– Standards: UL 224 (File No. E153276: 600V, 125°C, except clear product)
LS-2690R
Semi-Rigid Dual-Wall Polyolefin Tubing for the Fuel, Brake Pipe System
Key Specifications
– Operating temperature range: -35°C ~ 90°C
– Minimum shrink temperature: 120°C
– Shrink ratio: 25% or more in radial direction
-Standards: MS231-18 (Hyundai Automotive Specifications for Tubing)

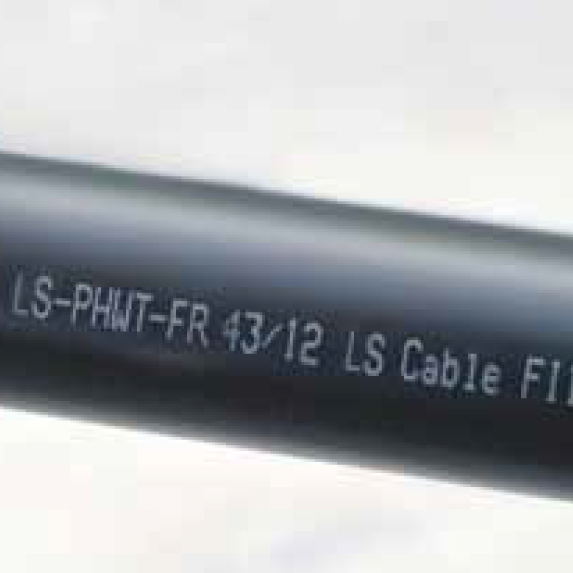

LS-PHWT-FR
Flame-retardant Adhesive-lined Heavy-Wall Polyolefin Tubing
Key Specifications
– Operating temperature range:-55°C ~ 120°C
– Flammability: VTFT (IEEE 383)
– Minimum shrink temperature: 120°C
– Shrink ratio: 67% or more in radial direction
– Standards: AS23053/15 (up to size 51) ABS Certificate No. 06-BK 155018 UL 224 (File No.: E84393 600V, 125°C, except clear products)
LG-BBHV
High Voltage Busbar Insulation Tubing
Key Specifications
-Standards: Qualification report for BBHV

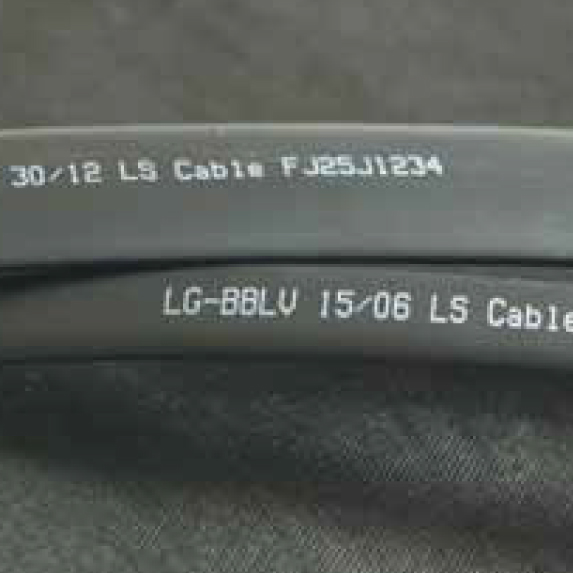

LG-BBLV
High Voltage Busbar Insulation Tubing
Key Specifications
-Standards: Qualification report for BBLV

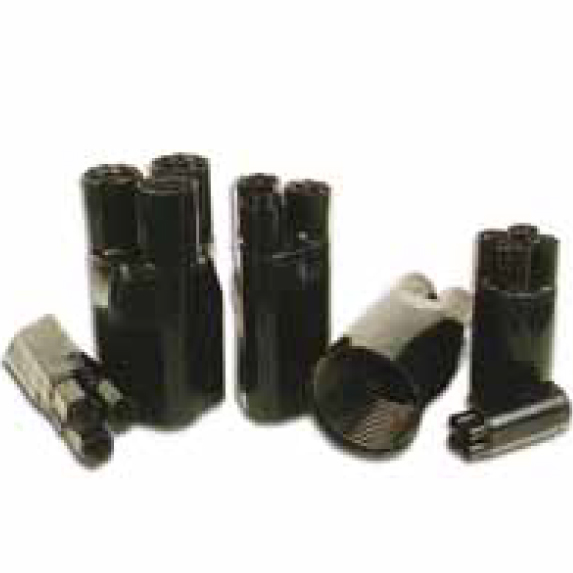

LS-CB / Cable Breakout
P/N : LS-CB
Typical Feature
– Color: Black
– Finger No: 2~4
– Hot Melt: Poly-amide based hot melt adhesive

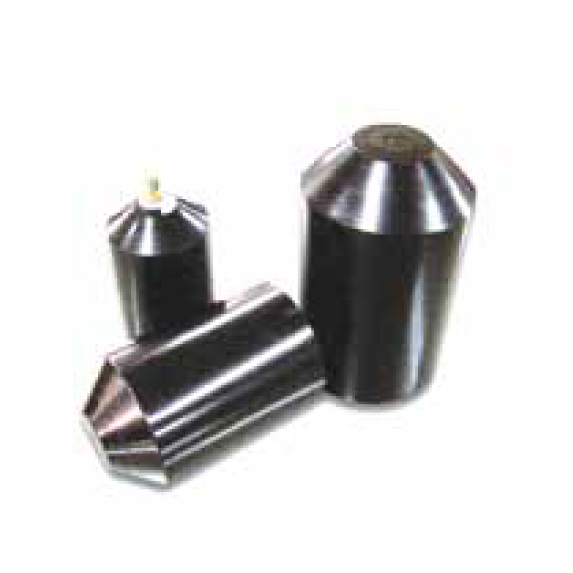

LS-CEC / Cable End Cap
P/N : LS-CEC
Typical Feature
– Color: Black
– Coating Type: flim from or spiral form
*For pressurized telecom cables, the end caps are fitted with a non return air valve
